According to the Ukrainian government’s sanctions portal and Ukraine’s Main Directorate of Intelligence, a Geran-3 attack drone was recently recovered largely intact and pulled apart for inspection. That single airframe, lifted from a field after an attempted strike, has turned into a gathering source of intelligence rather than a battlefield trophy. Investigators catalogued its electronics, marked serials and board markings, and compared them with previous finds. The result, as Kyiv’s services describe it, is a clear list of Western components that ended up inside a Russian drone used in the war against Ukraine. The same teams also produced a full 3D digital reconstruction of the drone, giving engineers and air defenders a precise model to train on. The Geran-3 is regarded by Ukrainian analysts as a jet-powered offshoot of the Shahed family that Russia labels with its own designation. It carries a modest but dangerous warhead and is launched to strike infrastructure, air bases or any target that cannot be permanently guarded.Follow Army Recognition on Google News at this link

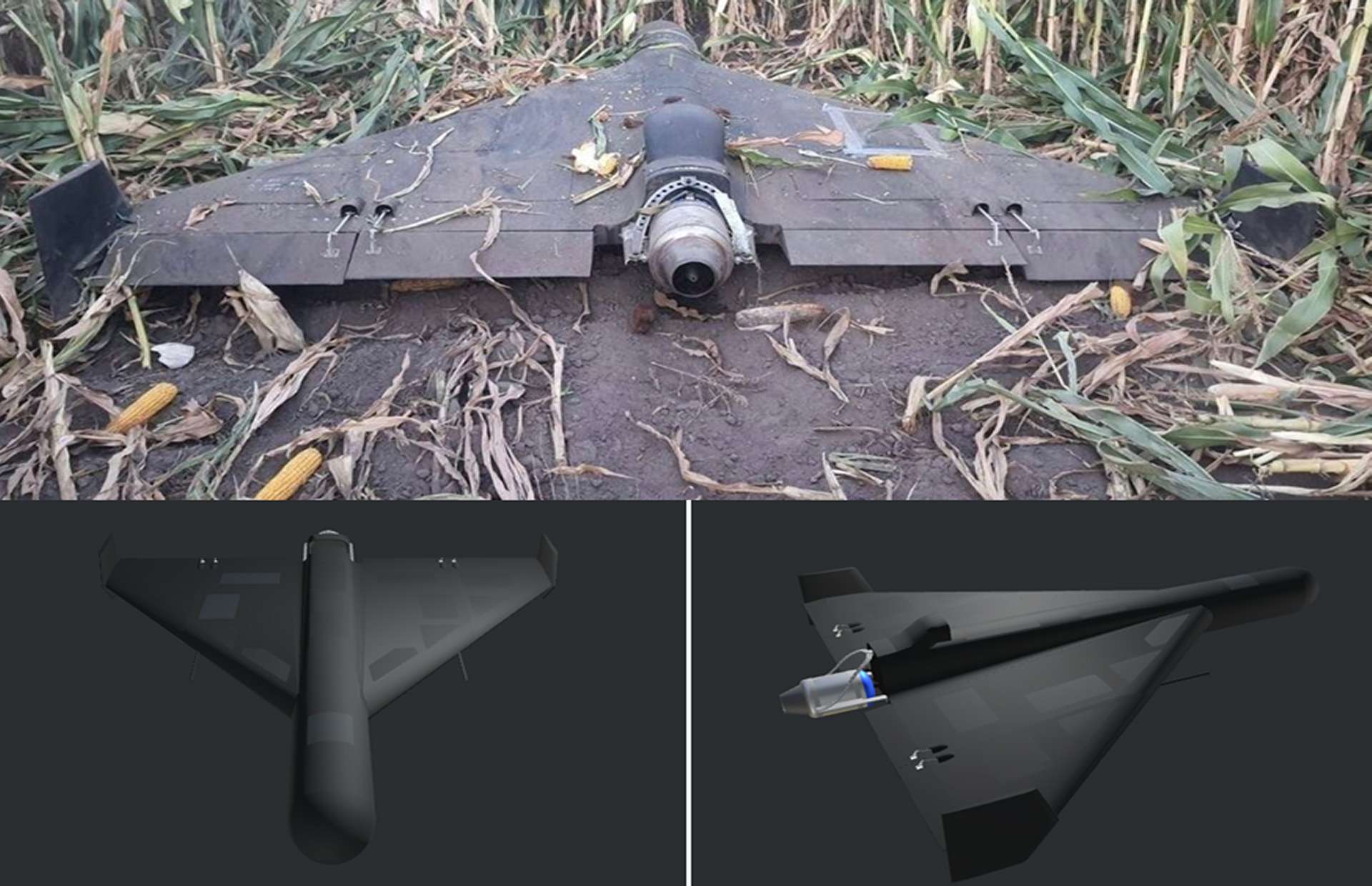

A seized Geran-3 drone in Ukraine allowed intelligence services to trace Western components and build a full 3D model to support sanctions and air defense planning (Picture sources: Ukrainian Intelligence Services).
The seized airframe shows a compact delta wing planform built from composite skins over simple internal structure. This geometry is familiar by now, but the powerplant is not the small gasoline engine of the earlier Geran-2. At the tail sits a compact turbojet mounted on a short pylon with an intake duct blended into the fuselage. A jet package gives more speed and a crisper throttle response, which is useful when the operator needs to keep air defenses guessing. The intake, rear nozzle hardware and mounting frame are all visible on photos released by Ukrainian units, and they match what wreckage collectors along the front have been seeing for months.
Inside the body, technicians found a mix of commercial and purpose-built parts. Flight control is handled by a small autopilot board tied to inertial sensors and satellite navigation. Wiring looms route power from a central battery stack to servos in the elevons and to the engine starter and fuel system. The boards carry markings associated with Western manufacturers. Some items are the kind of catalog components would be recognized, others are higher-grade power management chips and RF modules. Put together, it forms a cheap and serviceable guidance suite that can fly a preplanned route and accept updates if the link holds.
The payload section, placed forward of the wing, houses a unitary explosive charge with a contact fuse. Ukrainian specialists assess the warhead to be in the few-dozen-kilogram class, enough to shatter transformer yards, damage aircraft on open ramps or tear holes in apartment blocks. The designers have kept the airframe simple. There are few removable panels, limited fasteners, and a lot of adhesive bonding. That keeps production fast and discourages recovery of usable parts after a crash. The 3D model compiled by Ukrainian intelligence maps these dimensions and the component locations. It is already being used to run radar cross-section estimates and simulate how the jet exhaust plume and composite skins behave under different frequencies, a detail that matters for both search radars and heat-seeking interceptors.
The Geran-3 is launched with three main missions. First, it forces Ukrainian air defenses to light up, consume missiles and reveal positions. Second, it hunts for critical nodes where even a small blast can create outsized disruption, for example a substation or a fuel distribution point. Third, when flown in numbers, it clutters the picture for defenders while faster weapons come in behind it. A jet engine adds speed compared with propeller-driven types and shortens the window for engagement, especially at night or in poor weather. The drone still flies predictable legs once set on course, which means guns, MANPADS and mobile short-range systems can and do kill them when cued correctly. The economics remain harsh though. A relatively inexpensive airframe can soak up interceptors that cost many times more, so the attacker is content even when the success rate is low. Ukraine’s answer mixes layered ground defenses with electronic warfare that degrades satellite navigation and forces the drone off its programmed path.
Kyiv argues that the drone’s electronics, many of them commercial items, are reaching Russia through re-export chains that span several countries. Publishing component names and families, as the Ukrainian sanctions resource now does, is meant to help customs services and compliance teams flag shipments before they move. It also arms diplomats with evidence when they press partner governments to tighten screening of dual-use exports. If the flow of chips, regulators and RF modules slows down, Russia has to redesign boards or cannibalize other stocks, which takes time and affects output.
Russia’s campaign has learned from battlefield experience and from Iran’s long practice with Shahed models. The Geran-3 shows an effort to push speed and complicate defenses while keeping the build simple, with no high technology. That is the problem for sanctioning states, because it is harder to choke off low-end parts that also feed civilian markets. The Ukrainian 3D model and teardown report therefore serve two audiences. Air defenders get a sharper training tool and policymakers get a concrete map of how seemingly harmless products travel through intermediaries and show up in a weapon that hits a power plant hundreds of kilometers away.
Written by Evan Lerouvillois, Defense Analyst, Army Recognition Group.
Evan studied International Relations, and quickly specialized in defense and security. He is particularly interested in the influence of the defense sector on global geopolitics, and analyzes how technological innovations in defense, arms export contracts, and military strategies influence the international geopolitical scene.
